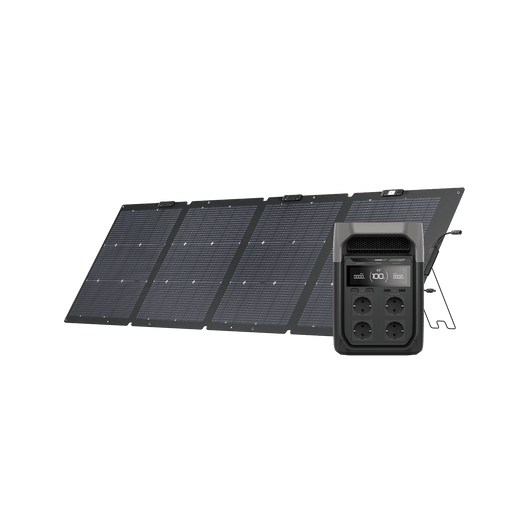

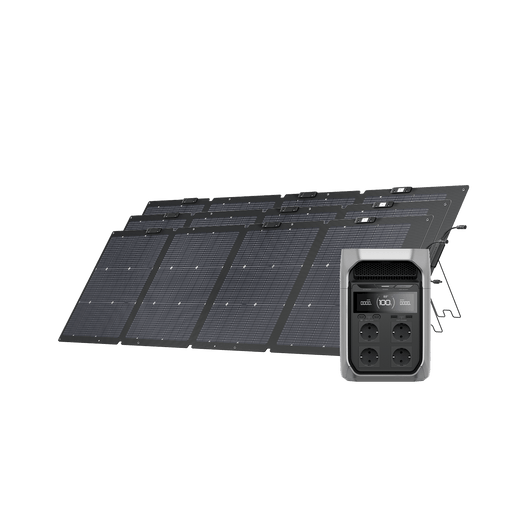

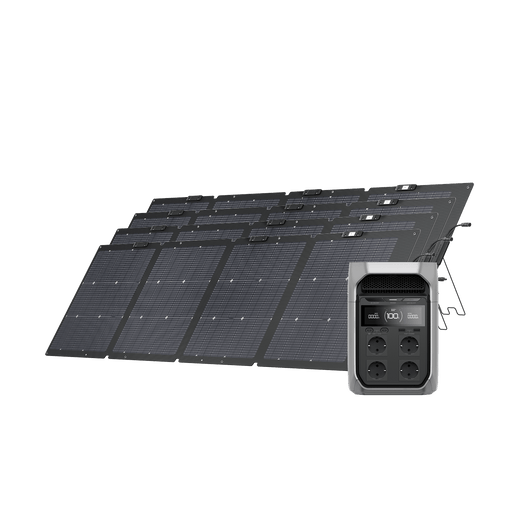

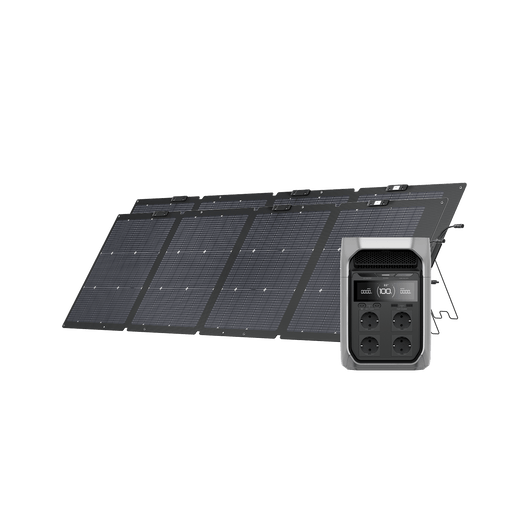

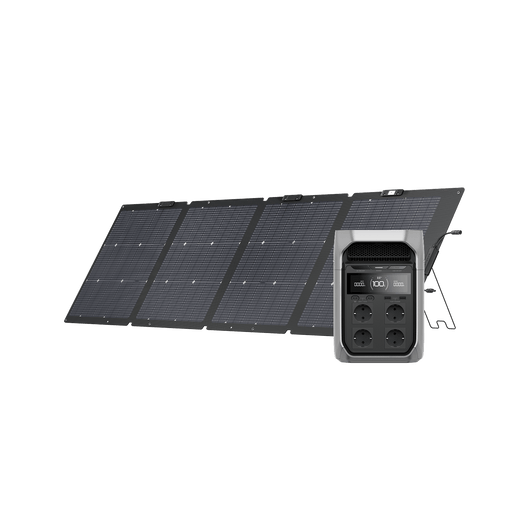

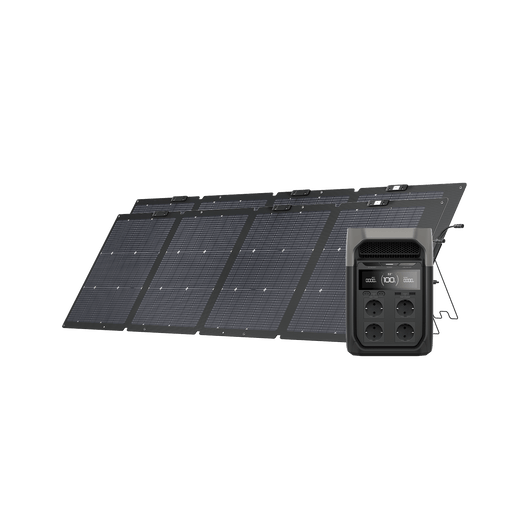

EcoFlow 220W Bifacial Portable Solar Panel
Capture More Energy with a Dual-Sided Design
With a 220W primary side and a 175W side on the back for ambient light, you can capture up to 25% more solar energy and charge your DELTA 3 Plus/DELTA 3 even faster.
Generate Even More Energy
With the portable solar panel industry's first use of TOPCon solar technology, we've raised the bar on conversion efficiency, reaching 23%.
Allows more energy intake in less time charging for DELTA 3 Plus/DELTA 3.
Capture More Solar with an Adjustable Angle
With a newly integrated solar angle guide and stand, adjust the angle of the panel by 30 degrees in seconds to get the most sunshine at all times.

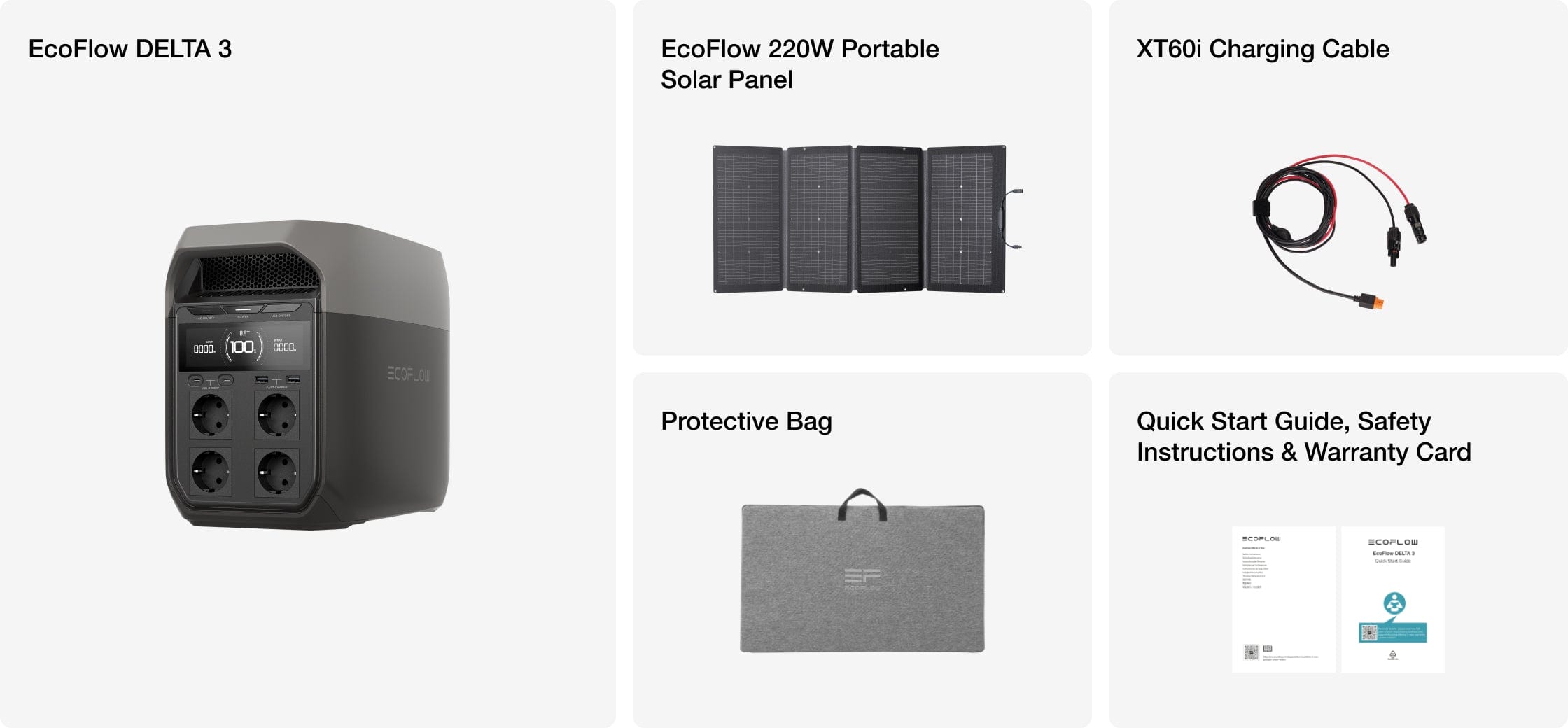

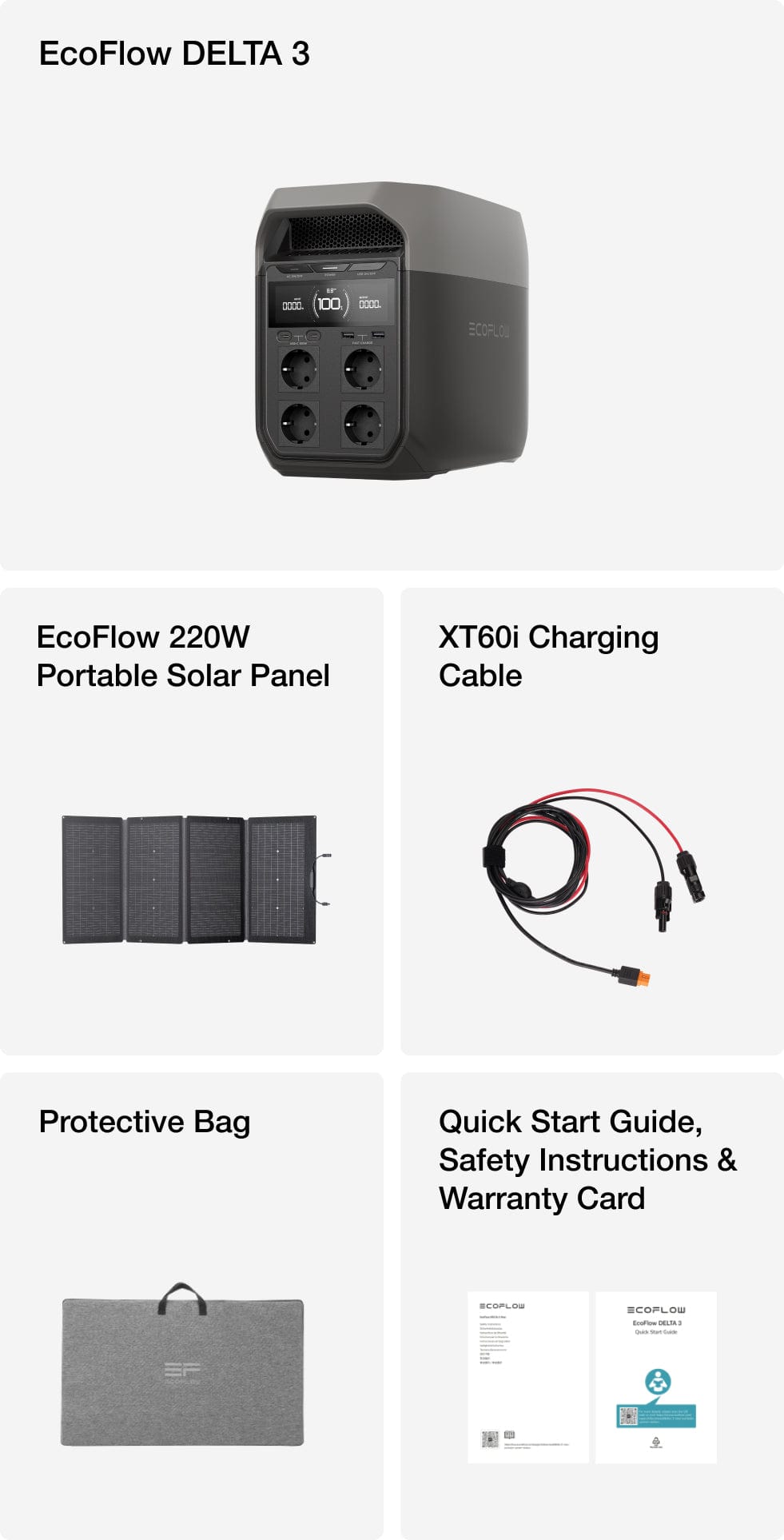

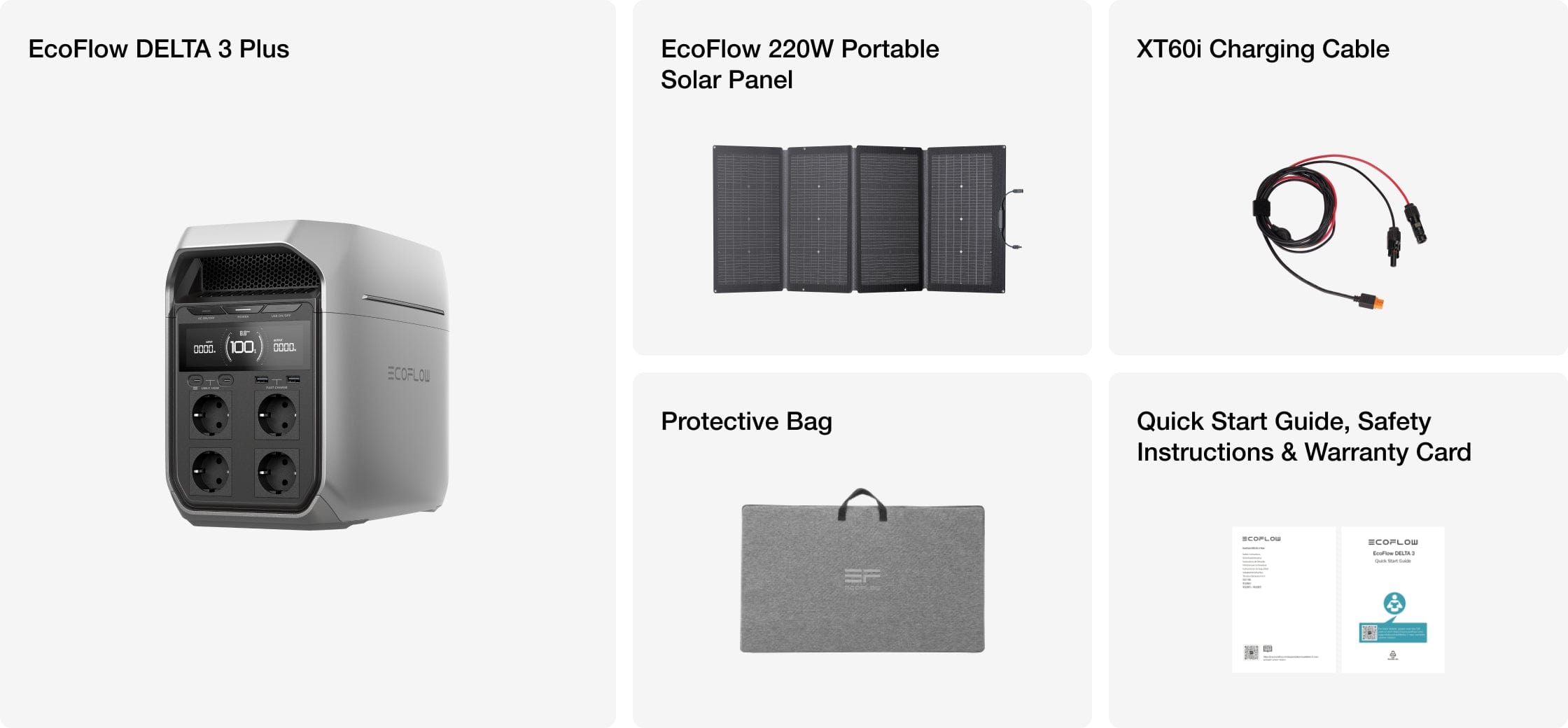

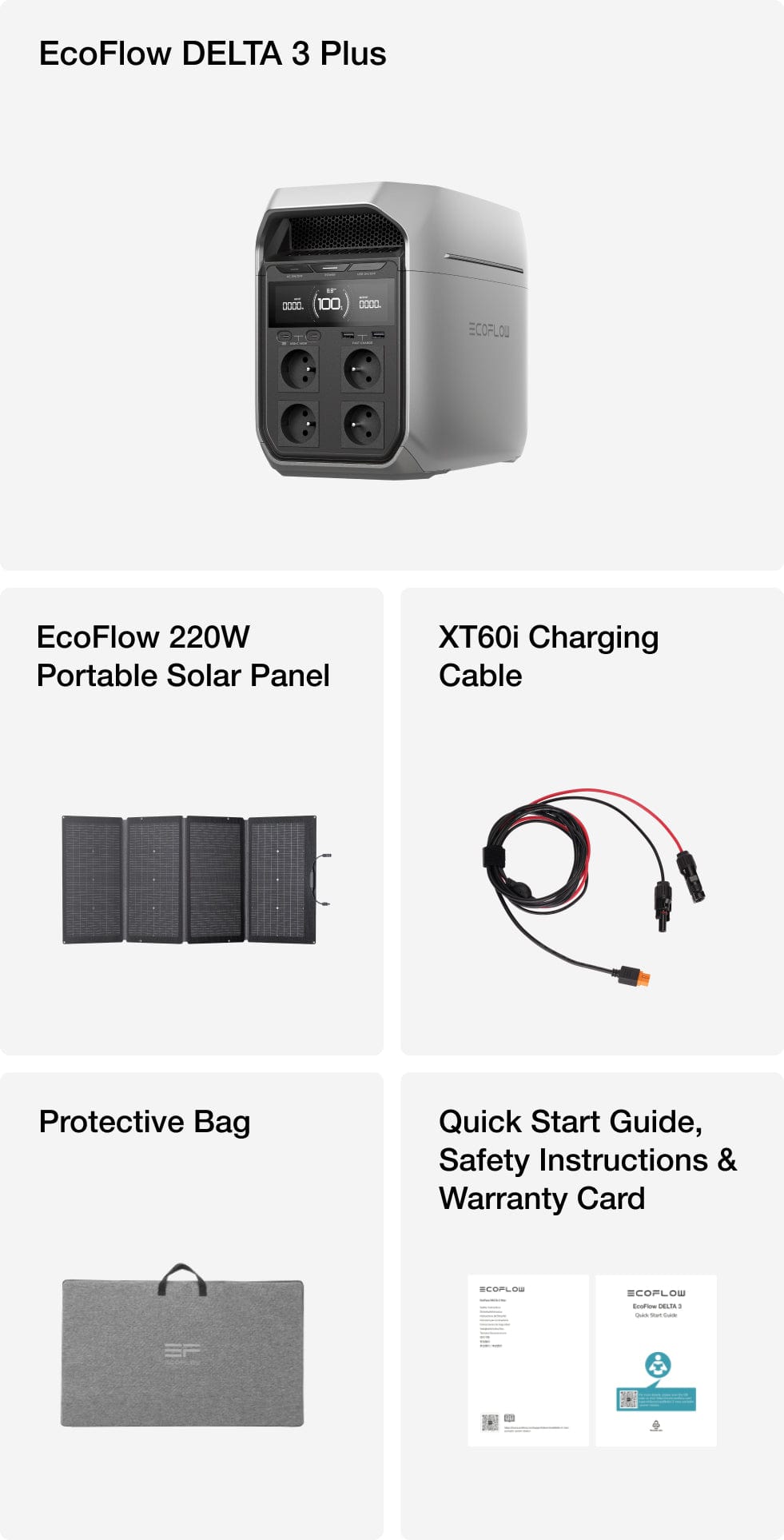

What's in the box
What's in the box
Specs - DELTA 3 / DELTA 3 Plus
Colour/ID
DELTA 3 - Silver / Grey
DELTA 3 Plus - Silver
Capacity
1024Wh
Net Weight
≤12.5 kg
Dimensions
398×200×284 mm
D3 EB Dimensions
398×200×198 mm
App
Supported (TOU/Storm warning)
Extra Battery
Expandable capacity to 5kWh
DELTA 2 Max/DELTA 2/DELTA Pro 3/DELTA 3 Extra Battery Supported
Total Output Ports
11
AC × 4
4 × 1800W (Surge 3600W)
Max Device(s) Power Supported by X-Boost
2400W
USB-A × 2 (Fast charging)
DELTA 3 - 2 × 18W Max
DELTA 3 Plus - 2 × 36W Max
USB-A × 2
/
USB-C × 2
DELTA 3 - 2 × 100W Max
DELTA 3 Plus - 2 × 140W Max
Car Power × 1
12.6V, 10A, 126W Max
DC5521 × 2
2 × 12.6V, 3A Max
AC
1500W (56 Min)
Solar
DELTA 3 - DC input 11V-60V1 × 500W Max (130 Min)
DELTA 3 Plus - DC input 11V-60V2 × 500W Max (70 Min)
Smart Generator
1500W (56 Min)
Car
800W (1.3 Hr)
AC+PV
1500W (56 Min)
Chemistry
LFP
Cycle Life
DELTA 3 - 4000 Cycles to 80% Capacity
DELTA 3 Plus - 4000 Cycles to 80%
Waterproof level of battery pack
IP65
UPS
DELTA 3 - <10 ms
DELTA 3 Plus - <10 ms HID
Volume
600W <30 dB/1200W <40 dB
Warranty
5 Years
Specs - 220W Bifacial Portable Solar Panel
Rated Power
220W Front Side/155W Rear Side
Cell Type
Monocrystalline Silicon
Efficiency
22-23%
Warranty
24 months
Dimensions
82*183*2.5cm (32.3*72.0*1.0 in)
Open Circuit Voltage
21.8V (Vmp 18.4V)
Short Circuit Current
Front Side: 13A (Imp 12.0A)
Rear Side: 8.8A (Imp 8.4A)
Weight (Solar Panel)
Approx. 9.5kg
